    Los deportes del NC son una compañía digna de confianza, proporcionan productos excelentes y servicios. ¡Espere que tengamos una cooperación a largo plazo y estable con deportes del NC!
  • JiangSu ChangNuo New Materials Co., Ltd.
    Andrew
    Somos muy felices con nuestra compra. Esto es un producto de calidad excepcional, mejor que esperé. Gracias por toda su sugerencia y buen servicio, espero que poder tener otra oportunidad a la cooperación.
Persona de Contactar Ahora : Shell
Número de teléfono : +86-18105169166
Whatsapp : +8618105169166

Ninguna toxicidad y ningún olor y conveniente al suelo de los deportes del baloncesto del SPU de la construcción

  • No Toxicity and No Smell and Convenient to Construction SPU Basketball Sports Flooring
  • No Toxicity and No Smell and Convenient to Construction SPU Basketball Sports Flooring
  • No Toxicity and No Smell and Convenient to Construction SPU Basketball Sports Flooring
  • No Toxicity and No Smell and Convenient to Construction SPU Basketball Sports Flooring
Lugar de origen China
Nombre de la marca CN Sports
Certificación IAAF/ITF/RoHS/ISO140019001/ISO14001/ISSS
Número de modelo CN-S01
Cantidad de orden mínima /
Precio US$10-35/square meter
Detalles de empaquetado Paquete en el barril/plataforma
Tiempo de entrega Dentro del trabajo 15 días después de su depósito
Condiciones de pago L/C, T/T
Capacidad de la fuente 100000Tons por año

Éntreme en contacto con gratis las muestras y los vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Material Silicio Polyurea Color Rojo o usted puede modificar para requisitos particulares
Garantía 8-10years Función Protección del medio ambiente sana y y alto resistente del enlace y de agua
Deformación vertical 10m m Harddness 40
El valor de Springback 26 Tarifa de recuperación de la compresión 92
Nivel ignífugo level1
Deja un mensaje
Descripción de producto

No Toxicity and No Smell and Convenient to Construction SPU Basketball Sports Flooring





Product Description

Jiangsu ChangNuo New Materials Co.,Ltd was founded in 2009.We are the one stop material supplier in China for high quality sport matrial,such as SPU court , running track , artificial grass, rubber particle and we're also engaging in the construction of sports venues.It is a high-tech enterprise integrating R&D, production and sales of new materials for sports venues.

What is SPU?

SPU sports flooring is made by silicon PU / silicon polyurethane materials. It has been implemented for the past 10 years and created a classic name for sports flooring. It is widely used for sports flooring and playground field, especially for outdoor fields.

It’s a design based on human kinetics and physical characteristics flooring system, with hard top layer
combined with soft rebound cushion lower layer structure. It’s suitable to lay on concrete or asphalt
substrates. The cushion layer is formed by single component modified polyurethane and top up with two
component modified acrylic resilience layer.


The excellent performance of SPU:HARD TOP SOFT DOWN





The purpose of building sports courts is to ensure a professional,safe,healthy sports condition-the characteristicsof hardness will bring the professional sporting feeling;the cushion effectively increasing the shock absorption and reduce the incidence of injuries to ankles, joints and ligaments. At the same time,it should reduce abrasion caused by falling and accident




Charatereristics:



a, The purpose of building sports courts is to ensure a professional,safe,healthy sports condition.

b, the characteristics of hardness and rebounce will bring the professional sporting feeling.

c, the cushion effectively increasing the shock absorption and reduce the incidence of injuries to ankles, joints and ligaments.

d, At the same time,it should reduce abrasion caused by falling and accident.





Detailed specification of product

Standard of Sports Performance

Item test project technical requirements test results
1 Shock absorption rate (%) Fr≥12 21
2 The springback value(%) ≥20 30
3 Sliding friction coefficient 0.4≤u≤0.7 0.53
4 Compression recovery rate(%) ≥95 97
5 Hardness(Shore A),20℃ 60-80 68



Environmental Performance Standard

Based on considerations of social environmental security responsibility

Perform interior decoration decorate material national mandatory standard, do real non-toxic harmless green material.

Standard Testing Result of SPU



Item test project technical requirements test results
1 Volatile organic compounds(VOC)(g/L) ≤670 91
2 benzene(%) ≤0.3 Did not check out
3 Toluene ＋xylene＋ ethyl benzene(%) ≤30 5
4 The free diisocyanate(TDI＋HDI)(%) ≤0.4 Did not check out
5 Halogenated hydrocarbon(%) ≤0.1 Did not check out
6



Soluble heavy metals(mg/kg)

 plumbum Pb ≤90 Did not check out
Cadmium Cd ≤75 Did not check out
chromium Cr ≤60 Did not check out
mercury Hg ≤60 Did not check out



Durable Performance Standard

Based on the owner or operator, construction and maintenance

Reflect the quality level of the site, and durable time limit

Technical data for SPU Sports Flooring



Item test project technical requirements test results
1 Tensile elogation,% ≥400 1112
2 The tensile strength,Mpa ≥1.8 3.5
3 Artificial climate ageing resistance(300h) No bubbles, no peeling, no crack； pulverization≤grade 1,△E≤6.0 No bubbles, no peeling, no crack； pulverization＝grade 0,△E＝0.57
4 Wear resistance(750g/500r),g ≤0.050 0.031
5 Durability, aging experiment(168h) Tensile elongation,% ≥300 853
The tensile strength,Mpa ≥1.3 1.6
6



Resistance to water(168h)



 No bubbles, no peeling, allowing a slight color change,recovery after 2h No bubbles, no peeling, no discoloration
7 Flame retardant level I I



Excellent performance



1· More professional
Professional flexibility, excellent security protection.
High ductility, excellent wear resistance, decorative floor function
2· More environmental protection
High standards of environmental protection, indoor and outdoor can be laid
3· More beautiful
The original creation of sand color structure , break the bottleneck of “ red green and blue
4· Visual.More effective
Mixed function, active site "one place too many uses" is the "golden choice" for building;







Product Structure:

Ninguna toxicidad y ningún olor y conveniente al suelo de los deportes del baloncesto del SPU de la construcción 0

Product Samples:

Ninguna toxicidad y ningún olor y conveniente al suelo de los deportes del baloncesto del SPU de la construcción 1

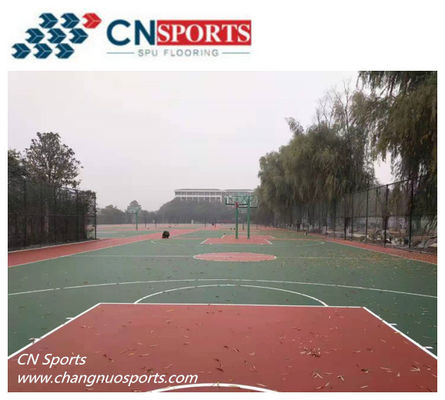

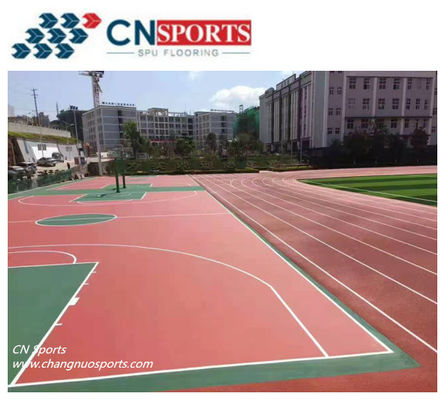

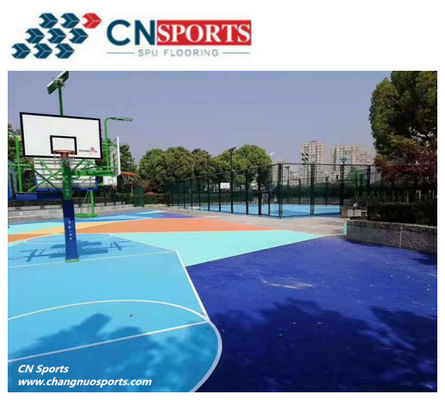

Project Case

Ninguna toxicidad y ningún olor y conveniente al suelo de los deportes del baloncesto del SPU de la construcción 2

Product Line

Ninguna toxicidad y ningún olor y conveniente al suelo de los deportes del baloncesto del SPU de la construcción 3
