Suelo del baloncesto de la PU de Sililcon de la dureza 158 alargamiento extensible y 45

  • 158 Tensile Elongation and 45 Hardness Sililcon PU Basketball Flooring
  • 158 Tensile Elongation and 45 Hardness Sililcon PU Basketball Flooring
  • 158 Tensile Elongation and 45 Hardness Sililcon PU Basketball Flooring
Lugar de origen China
Nombre de la marca CN Sports
Certificación ITF/RoHS/ISO140019001/ISO14001/ISSS
Model Number CN-S01
Minimum Order Quantity /
Precio US$10-35/square meter
Packaging Details Pack in barrel/pallet
Tiempo de entrega Dentro del trabajo 15 días después de su depósito
Payment Terms L/C, T/T
Supply Ability 100000Tons per year

Éntreme en contacto con gratis las muestras y los vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Material Silicon Polyurea Application outdoor school stadiums and Gymnasiums
Garantía 5 años Color Red or you can customize
Vertical Deformation 0.7mm Dureza 38
Flame Retardant Level level 1 Wear Resistance 0.046
Deja un mensaje
Descripción de producto

158 Tensile Elongation and 45 Hardness Sililcon PU Basketball Flooring

Product Description

Jiangsu ChangNuo New Materials Co.,Ltd was founded in 2009.We are the one stop material supplier in China for high quality sport matrial,such as SPU court , running track , artificial grass, rubber particle and we're also engaging in the construction of sports venues.It is a high-tech enterprise integrating R&D, production and sales of new materials for sports venues.

What is SPU?

SPU sports flooring is made by silicon PU / silicon polyurethane materials. It has been implemented for the past 10 years and created a classic name for sports flooring. It is widely used for sports flooring and playground field, especially for outdoor fields.

It’s a design based on human kinetics and physical characteristics flooring system, with hard top layer
combined with soft rebound cushion lower layer structure. It’s suitable to lay on concrete or asphalt
substrates. The cushion layer is formed by single component modified polyurethane and top up with two
component modified acrylic resilience layer.



Detailed specification of product

Standard of Sports Performance

Item test project technical requirements test results
1 Shock absorption rate (%) Fr≥12 21
2 The springback value(%) ≥20 30
3 Sliding friction coefficient 0.4≤u≤0.7 0.53
4 Compression recovery rate(%) ≥95 97
5 Hardness(Shore A),20℃ 60-80 68



Environmental Performance Standard

Based on considerations of social environmental security responsibility

Perform interior decoration decorate material national mandatory standard, do real non-toxic harmless green material.

Standard Testing Result of SPU



Item test project technical requirements test results
1 Volatile organic compounds(VOC)(g/L) ≤670 91
2 benzene(%) ≤0.3 Did not check out
3 Toluene ＋xylene＋ ethyl benzene(%) ≤30 5
4 The free diisocyanate(TDI＋HDI)(%) ≤0.4 Did not check out
5 Halogenated hydrocarbon(%) ≤0.1 Did not check out
6



Soluble heavy metals(mg/kg)

 plumbum Pb ≤90 Did not check out
Cadmium Cd ≤75 Did not check out
chromium Cr ≤60 Did not check out
mercury Hg ≤60 Did not check out



Item test project technical requirements test results
1 Tensile elogation,% ≥400 1112
2 The tensile strength,Mpa ≥1.8 3.5
3 Artificial climate ageing resistance(300h) No bubbles, no peeling, no crack； pulverization≤grade 1,△E≤6.0 No bubbles, no peeling, no crack； pulverization＝grade 0,△E＝0.57
4 Wear resistance(750g/500r),g ≤0.050 0.031
5 Durability, aging experiment(168h) Tensile elongation,% ≥300 853
The tensile strength,Mpa ≥1.3 1.6
6



Resistance to water(168h)



 No bubbles, no peeling, allowing a slight color change,recovery after 2h No bubbles, no peeling, no discoloration
7 Flame retardant level I I

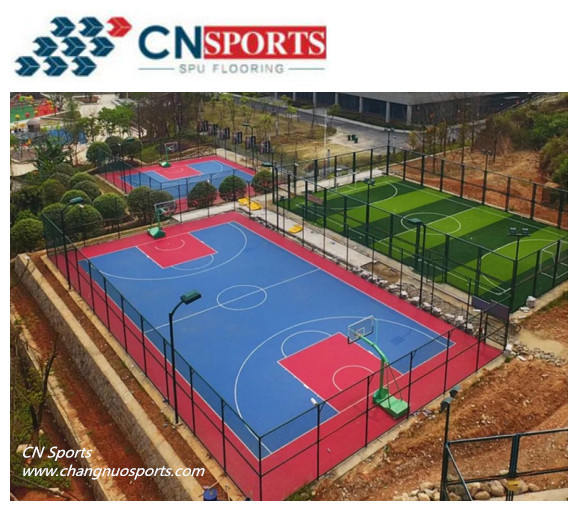

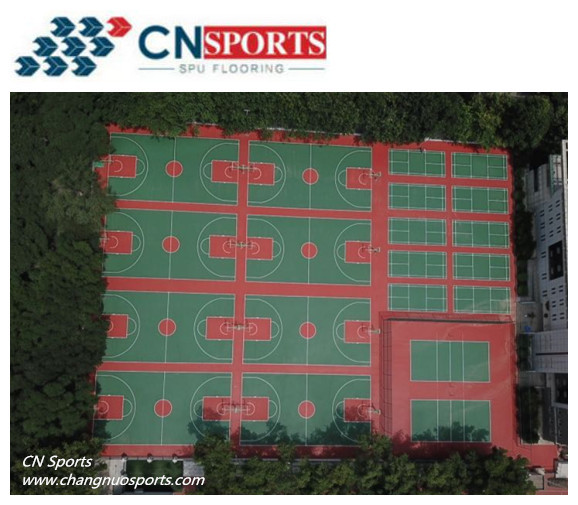

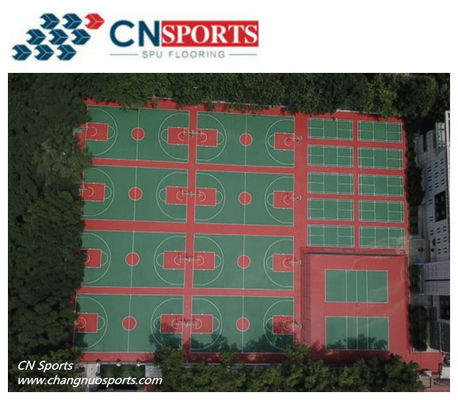

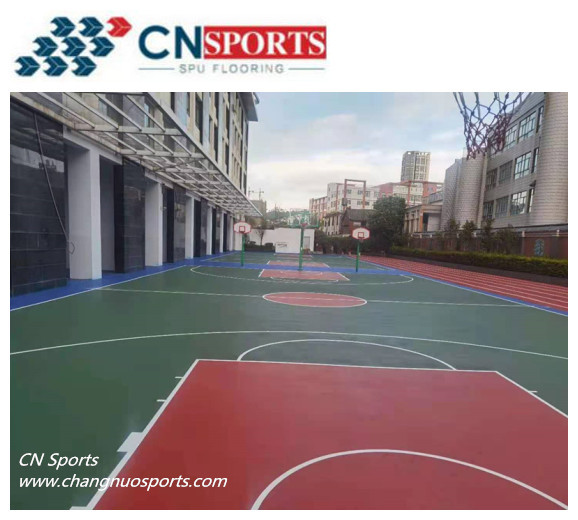

Project Case

Suelo del baloncesto de la PU de Sililcon de la dureza 158 alargamiento extensible y 45 0



Package

Suelo del baloncesto de la PU de Sililcon de la dureza 158 alargamiento extensible y 45 1

Product Line

Suelo del baloncesto de la PU de Sililcon de la dureza 158 alargamiento extensible y 45 2
